Differentiators

1. High resolution
2. Industrial Grade
3. Easy to Integrate
4. Quick Support

Solution

Surveillance applications

Features

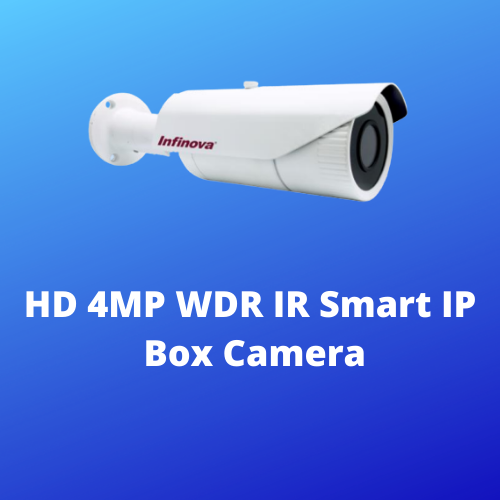

4MP WDR IR Smart IP Box Camera adopts a 1/3" progressive scan CMOS sensor and has an internal 2.8-12mm HD motorized zoom lens

Support

Support provided by Infinova Tech Support Staff

Technical Specifications

1. 1/3" CMOS sensor
2. IR-Cut Removable (ICR) Filter for Day/Night switching
3. IR distance up to 70m
4. Uses Smart-IR technology; auto-adjusts IR lamp power according to ambient illumination
5. Supports multi-frame integration WDR, with dynamic range up to 120dB Smart functions, such as perimeter protection (wire cross and invasion detection) and features detection (scene change, defocus, color cast, low brightness and high brightness)
6. Built-in motorized zoom lens, supporting assistant focusing
7. 265+M-JPEG or H.264+M-JPEG video encoding, three streams
8. Maximum resolution supports 2592×1520@20fps, 2048x1520@30fps
9. Bi-directional audio, G.711-A/G.711-U/AACoptional
10. Supports corridor mode
11. Local PC recording
12. Supports TF card storage/NAS storage
13. Support alarm recording and event recording (including broken network) Supports alarm snapshot and event snapshot
14. Supports multiple alarm trigger methods such as I/O input, broken network, motion detection, video tampering, smart analyzing, etc.; supports flexible alarm association settings like I/O output, emails, FTP picture uploading, audio, TF card recording and alarm information push
15. Up to 8 ROI (Region of Interest) areas
16. Supports motion detection, 4 areas configurable
17. Supports privacy mask, 4 privacy areas configurable
18. Supports live access and parameter setting via Web Server from multiple users
19. Compatible with Infinova’s digital video surveillance software
20. Standard SDK provided for easy integration with other video surveillance software
21. ONVIF Profile Q, S, G & T compliant
22. Supports PoE/12VDC/24VAC power supply
23. IP67 rating
24. With analog video output

Target Clients

Industries, Hotels, Universities, Smart Cities, Airports, Railways etc

Use cases

Video Surveillannce Applications
